INADOOR EI 90 – 50 dB

INADOOR EI90–50dB

FIREPROOF ACOUSTIC DOOR

The INADOOR CF is an acoustic door with a specific fire resistance performance rating of EI90, and an airborne sound insulation rating of 50 dB.

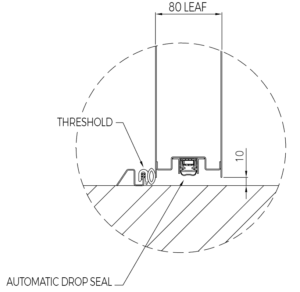

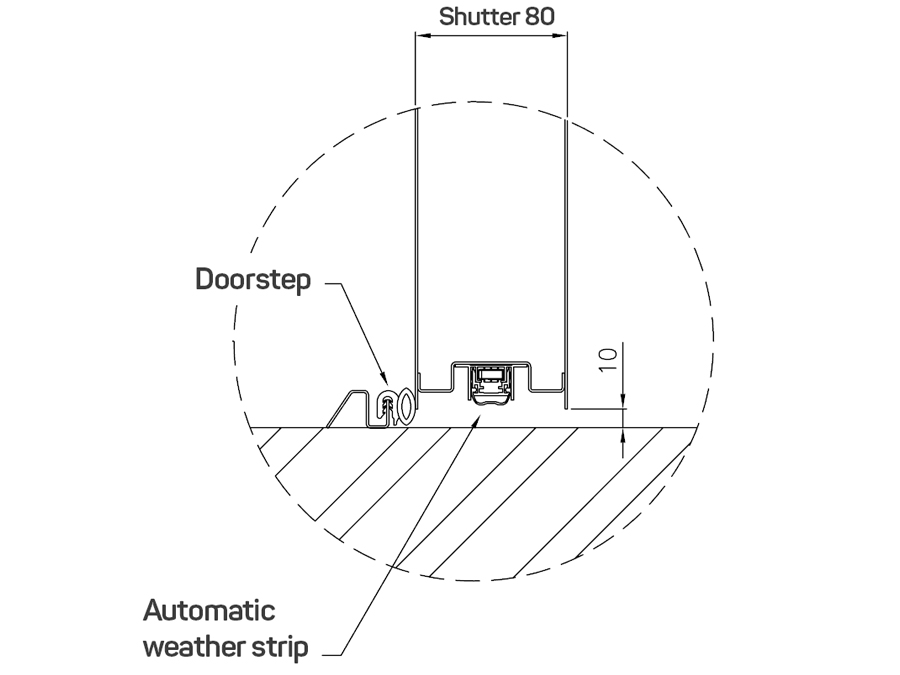

It is a single-leaf swing door, 80 mm thick, made of 1.2 mm galvanized steel sheet, with an interior filled with insulating and absorbent material, a P type steel frame, intumescent strip, acoustic steal, and cilindrex 20 x 100 mm shiny nickel bolts with a tear-drop seal. Additionally it features a telescopic bottom seal or automatic drop seal and a lower threshold.

This type of door is specially designed for use in hotels, theaters, auditoriums, and venues to leisure and entertainment.

It is suitable for multiple applications:

Industry

Audiovisual

Building

Entertainment

INADOOR EI90–50dB

FIREPROOF ACOUSTIC DOOR

The INADOOR CF is an acoustic door with a specific fire resistance performance rating of EI90, and an airborne sound insulation rating of 50 dB.

It is a single-leaf swing door, 80 mm thick, made of 1.2 mm galvanized steel sheet, with an interior filled with insulating and absorbent material, a P type steel frame, intumescent strip, acoustic steal, and cilindrex 20 x 100 mm shiny nickel bolts with a tear-drop seal. Additionally it features a telescopic bottom seal or automatic drop seal and a lower threshold.

This type of door is specially designed for use in hotels, theaters, auditoriums, and venues to leisure and entertainment.

It is suitable for multiple applications:

Industry

Audiovisual

Building

Entertainment

CHARACTERISTICS

CHARACTERISTICS

  • Sound Reduction Index R (dB): 50 dB.

  • Interior insulating material with acoustic, decay-resistant, fireproof, abrasion-resistant, and moisture-resistant properties.

  • Galvanized steel sheet.

  • Handle HSS 1 model in AISI 304 stainless steel.

  • 80 mm leaf.

  • Classification of Reaction to Fire: EI90 according to test APLUS 08/32309053 according to standard UNE EN 13501-2:2004.

  • Telescopic bottom seal or automatic drop seal on each leaf

OPTIONAL ACCESSORIES

OPTIONAL ACCESSORIES

VIEWING PORT

DOOR CLOSER

ANTI-PANIC BAR

LOCK

ARE YOU INTERESTED OR NEED MORE INFORMATION?

Contact us or request the INADOOR EI 90–50 dB data sheet, where you will find more detailed technical and acoustic characteristics of the product.

ARE YOU INTERESTED OR NEED MORE INFORMATION?

Contact us or request the INADOOR EI 90–50 dB data sheet, where you will find more detailed technical and acoustic characteristics of the product.
